Building Transportation, Industrial and Medical devices is faster with Opal-6

A small-footprint and robust connectors are the best way to design with i.MX6 for environmentally demanding applications


watch
High-performance Apps

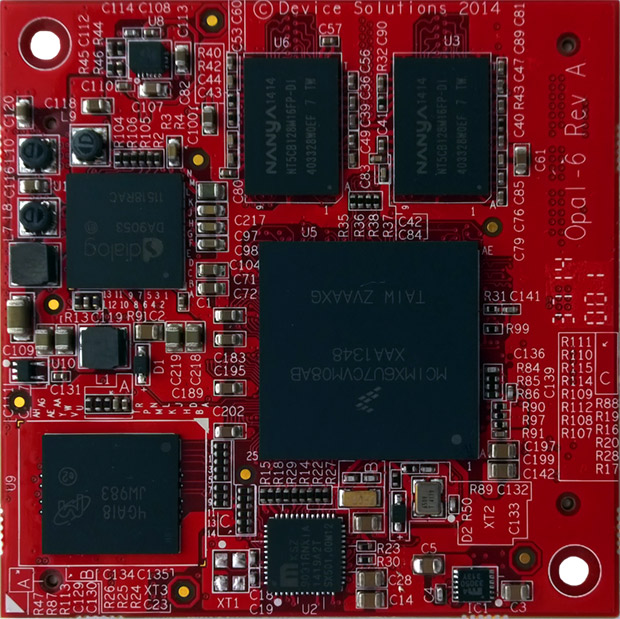

Opal-6 System on Module

NXP™ i.MX6


  • NXP i.MX6 System-on-Chip : 6 Options from Solo to QuadPlus
  • 1GBytes DDR3
  • 4GBytes eMMC Flash
  • 10/100/1000 Ethernet PHY
  • 2 x 168-pin connectors with almost all i.MX6 signals
Specifications
Core
  • Freescale i.MX6 Solo/DualLite/Dual/Quad/DualPlus/QuadPlus System-on-Chip
  • Single, Dual or Quad ARM Cortex-A9 @ 800MHz+
  • 512MBytes – 2GBytes DDR3 (1GByte Standard)
  • 4GBytes+ eMMC Flash
  • +5V input voltage
Connectivity
  • 10/100/1000 Ethernet with on-board PHY
  • High-Speed (480Mbps) USB OTG + High-Speed Host
  • 5 x Serial UART
  • 4 x I2C
  • 4 x Enhanced SPI
  • 2 x FlexCAN
  • 4 x PWM
  • 3 x SD/SDIO/MMC
  • PCIe
  • 3 x 10-bit ADC
  • 3.3V General Purpose I/O
  • JTAG debug
Graphics and User Interface
  • Video and Image Processing acceleration @ 1920×1080
  • 2D & 3D Graphics acceleration
  • 4 display interfaces with up to 3 active at any one time.
  • Interface to RGB, LVDS and MIPI panels
  • HDMI output
  • I2S/AC97 Audio interface
  • Enhanced Serial Audio Interface (ESAI)
  • 2 x Digital camera input
  • 4-wire resistive touch-screen controller
  • Keypad controller
Security
  • Secure boot option
  • Anti-tamper signals
  • Crypto acceleration
Package

High-Density Connectors

  • 60mm x 60mm footprint
  • < 6mm height
  • 2 x 168-pin connectors
  • 2 x Mounting holes

Opal-6Dimensioned







Development Kit

Prototype your new design FAST with all the features you need.  Highlights include:

  • 10/100/1000 Ethernet
  • PCIe
  • SIM connector
  • HDMI Display Interface
  • Dual LVDS Display Interfaces
  • Dual CAN including transceivers
  • RS485
  • 5V Digital I/O
  • WiFi a/b/g/n + BT option
  • 4 x USB Host ports
ODKRevB_Bottom_ba





Software

Opal-6 runs Linux and Microsoft’s Windows Embedded Compact Operating Systems.

Software documentation, including a list of supported featured for each OS is on-line here.

Linux 3.10.17

Linux is supported by Device Solutions and Timesys.
Documentation and source is on-line here.
Linux 3.14.38 / Yocto 1.8 (Fido) is in development.  Contact us for details.

Windows Embedded Compact 7 & 2013

Opal-6 is supported by the GuruCE i.MX6 BSP.

The latest release can be download from their web site.
